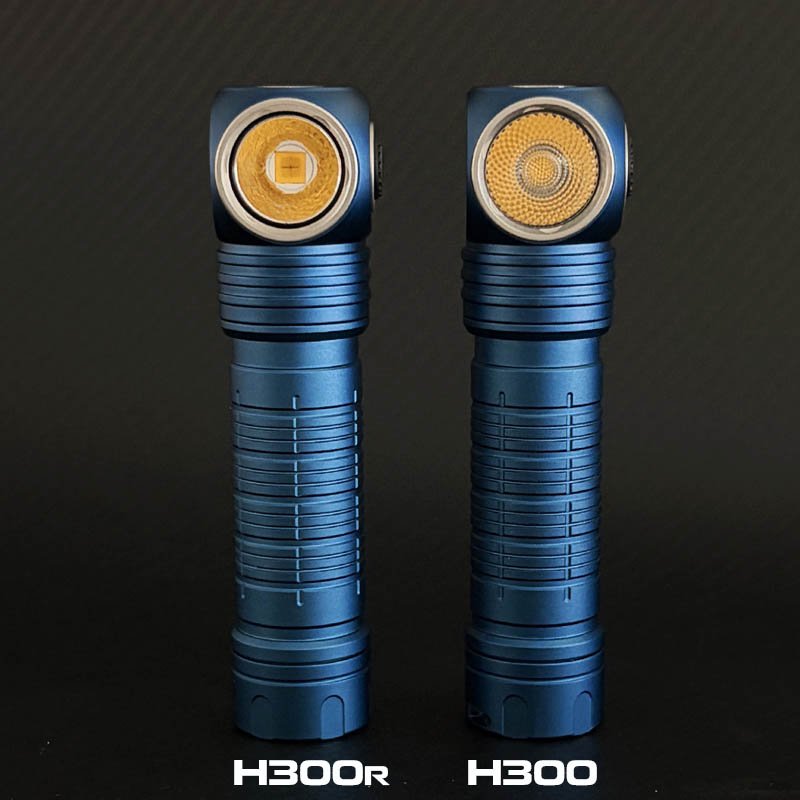

H300 / H300R LEd headlamp / Flashlight
CREE XHP50.2 Cool White K4 6500K Neutral White K2 5000K / High CRI J2 5000K / XHP50.3 HI 6500K
Nichia 144AR 4500K 90 CRI
XHP50.2 HD CW/NW: ANSI 2200 Lumens / 2500 LED Lumens
XHP50.3 HI CW: ANSI 2050 Lumens
XHP50.2 HD Ra 90 : ANSI 1800 Lumens
144ART R9050: ANSI 1500 Lumens
Max beam distance:
H300R: 9500cd (HI CW) / 6600cd (HD CW/NW) / 6000cd (HD Ra90)
H300: 4500cd 144ART) / 6000cd (HD CW/NW) / 5500cd (HD Ra90)
Max peak beam intensity:
H300R: 195 meters (HI CW) / 162 meters (HD CW/NW) / 155 meters (HD Ra90)
H300: 134 meters 144ART) / 155 meters (HD CW/NW) / 148 meters (HD Ra90)
Impact resistant: 1 Meter
Battery: 1×18650 , 2x CR123A
Rated Range: 2.7V ~ 8.4V
Length 104.7mm / 4.12 inch
Head diameter 25.2mm / 0.99 inch
Body diameter 21.6mm/0.85 inch
Weight: 54g / 1.90 oz (without battery)
Accessories: Headband, clip, lanyard, magnet replace rubber pad, Operator’s manual, Spare O-ring
Battery installation & Replace magnet: Insert the battery positive pole toward the light head, otherwise it will not work.
Ensure when the light turning on,the beam is directed away from the eyes.
When take the light with Bankcards(magnetic) or Cell phone,should replaced Magnet with rubber pad.
Turn ON/OFF & Mode transfer
When the flashlight was OFF status:
Click switch to Common used (H-M1-M2) mode.
Quickly double click switch to Turbo(T1/T2) mode.
Quickly triple click switch to Strobe(S1/S2/S3) mode.
Hold press switch 0.5 second to Low(L1/L2) mode.
When the flashlight was ON(any mode) status:
Click switch to turn off.
When the flashlight was on ( T1/T2, H/M1/M2, L1/L2 )
Press and hold the switch to automatically cycle, the level is selected when the side switch has been released, turn off memorized.
When the flashlight was on (H/M1/M2, L1/L2 )
Quickly double clicks switch tranfer Common used mode(H/M1/M2) to Trubo(T1/T2), repeat quickly
double clicks switch back to Common used mode(H/M1/M2)
Quickly triple clicks switch transfer Strobe mode, repeat quickly triple clicks switch back to previous mode.
When the flashlight was ON (S1/S2/S3)
Quickly double clicks switch tranfer S1-S2-S3, turn off memorized.
Location indicator & Lock-out function
when turn off the flashlight, quickly click switch 4 times, location indicator switch on and lock-out function
activation at same time,the indicator light flash every second. Double clicks can switch the indicator on/off,
Quickly click switch 4 times, switch button unlock and enter into Low(L1) mode.
Power indicator & Low voltage indication
Every time turn on , the side indicator will be light 5 seconds to display the battery power.
Blue light constant on: 100%~80% ,
Blue light blinks: 80%~50% ,
Red light constant on: 50%~20% ,
Red light blinks: 20%~0.
When the battery voltage drop down lower than 3.0V,indicator flash twice every 2 sec.
the light fast flash every 30 seconds at same time.
When the battery voltage drop down lower than 2.7V,the light will cut off.
Charging instructions and notices:
In charging, the red indicator constant light on, when battery almost full charge,indicator
change to constant blue light.
1.Super bright & latest CREE XHP50.2 LED, Max 2500 LED lumens. High-Performance, High-Efficiency and energy conservation.
2.New U.D.O.C Reflector. Increased reflectivity over 10%., Efficiency reflection, perfect beamshot, excellent structure and temperature resistance.
3.Rugged indestructible aluminum body with anti-scratching type III hard anodization
4.Multi-level dissipating heat design and copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
5.Side switch button to transferring mode, user-friendly interface to adjust output.
6.Intelligent dynamic detection of voltage to balance and adjust brightness, safe and efficient use.
7.Wide input range provides more choices of batteries. High efficiency driver circuit, no visible flash in any mode.
8.Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
9.Intelligent temperature control technology for flashlight stable and safe use.
10.Reverse polarity protection, to protect from improper battery installation.
11.Lock-out function. Avoids light turn on by unexpected.
12.Location indicator help easy to find the light in dark.
13.Magnetic tail, can be used in many special occasions, use as candle light, etc.
